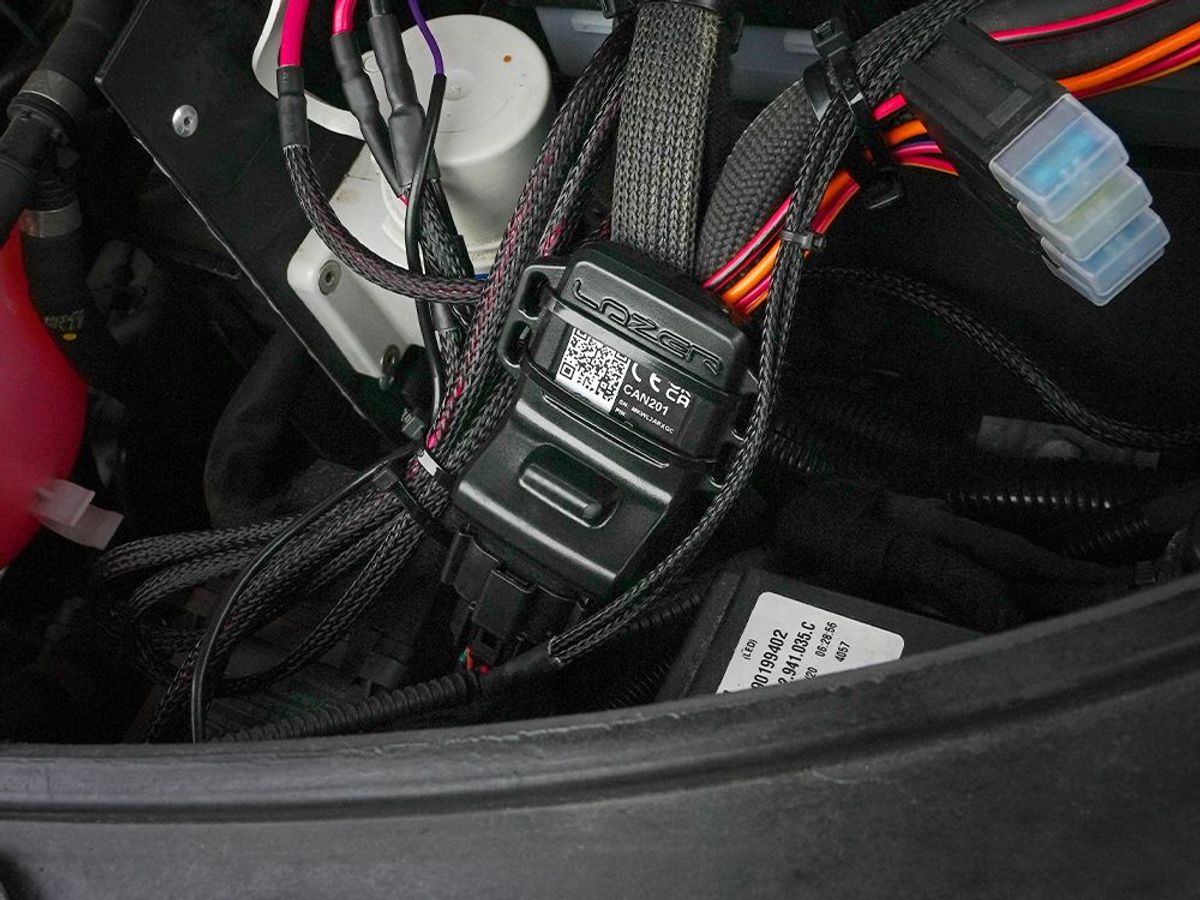

Canny is a CAN interface developed by Lazer Lamps, which enables the installation of additional lights for selected vehicles using CAN communication systems, where it is otherwise not possible to obtain 12V lighting signals from, for example, the rear of the vehicle's headlights. Consisting of a Canny Dongle, plus cable kit, and supported by a dedicated app (CANNY.LZR), the system benefits from being mounted in the vehicle's engine bay for quicker and easier installation, or inside the vehicle. Bluetooth synchronization and over-the-air updates improve system usability and installation speed.
› Connection
Connection to the vehicle's CAN cables is made via the supplied cable harness, with the blue (CAN Hi) and yellow (CAN Lo) cables supplied with automotive grade heat seal clamps to complete watertight connections. The included cable harness also includes a secured battery positive connection and ground wire. Additionally, 4 output cables, each programmable to respond to different inputs, such as: high beam, position light, ignition, reverse, etc., and compatible with some of our vehicle wiring kits (where the required output is >1Amp).
App and installation
Activation, synchronization and ongoing updates of your Canny Dongle are achieved through the app. After gaining full access via the unique serial number and PIN on the device, users can then access installation guides for their vehicle, before pairing the device and assigning and testing the various lighting functions. Updates, for example after a vehicle manufacturer has made changes to CAN "recipes", can also be completed via Bluetooth.
Delivered
- CANNY dongle
- CANNY cable set
- Quick start guide
List of compatible vehicles can be found HERE
