JL Audio JX500/1D - mono amplifier 500Watt

Compact gunpowder pack
This robust and reliable class D monoblock uses a robust MOSFET power supply design that provides rock solid bass performance at a very affordable price. The JX500/1D is made especially for subwoofer applications and has a variable low-pass filter with stepless crossover frequency between 50-200 Hz. It also has a variable bass boost at 45 Hz. with up to +12 dB and an optional remote control boost control (RBC-1). Dedicated high-level inputs are integrated, in addition to conventional low-level RCA inputs, making it easy to integrate with a range of OEM and aftermarket head units.

Nominal power at 14.4 volts:

• 1x 300Watt (RMS at 4ohm)
• 1x 400Watt (RMS at 3ohm)
• 1x 500Watt (RMS at 2ohm)

Nominal power at 12.5 volts:

• 1x 235Watt (RMS at 4ohm)
• 1x 300Watt (RMS at 3ohm)
• 1x 410Watt (RMS at 2ohm)

General specifications:

• Frequency range: 10 Hz - 150Hz (+0, -1dB)
• Signal to noise ratio, referred to highest rated current: > 90 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Signal to noise ratio, referred to 1 W: > 62 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 ohms: > 1000/50 Hz
• Damping Factor @ 2 ohms: > 500/50 Hz
• THD + N @ Nominal: <1% @="" 2="" ohm="" per="">
• Voltage range RCA inputs: from 200 mV - 4V RMS
• Voltage range High level inputs: 2V – 10V RMS
• My. copper Power / ground cable: 4 AWG
• Fuse: 60A (AFS, AGU or MaxiFuse™

Signal processor:

• Divider area: Low-pass filter only
• Filter curve: 12dB Oct
• Filter frequency: 50Hz - 200Hz
• Infrasonic filter: No
• Bass Boost EQ: 0 to +12dB @ 45Hz
• Polarity switch: No
• Remote subwoofer level control: Selectable (RBC-1)

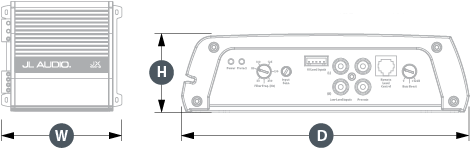

Physical goals:

• Height (H) 53mm
• Width (W) 199mm
• Depth (D) 195mm
• Net weight: 2.18kg
