Repair kit connector 17 pin 4F0 972 575 socket housing for VW Audi Seat Skoda

• 17-pin socket housing for spare parts and repairs
• Connector OE number: 4F0 972 575
• There are 3 different options available:
  • Connector / plug
    • Only the pure connector is supplied here
  • Connector / plug + contact material
    • Here we deliver the connector and the required contact material
    • For automotive cables FLRY 0.5mm² - 2.5mm²
  • Fully assembled connector / plug
    • Cable length: 600mm
    • 0.5mm² / 1.0mm² / 2.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
    • Assembled single cable similar to 000 979 134 E (1.0mm²), 000 979 035 E (0.5mm²), 000 979 136 E (1.0mm²)
    • Produced on fully automatic machines with crimp force monitoring (process monitoring)
    • Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
    • Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)

Selectable options:

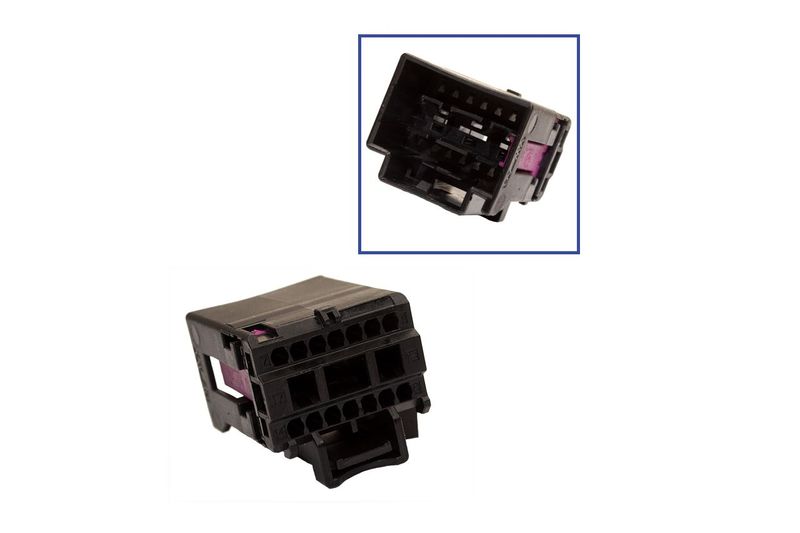

• Connector only (17-pin socket housing 4F0 972 575)

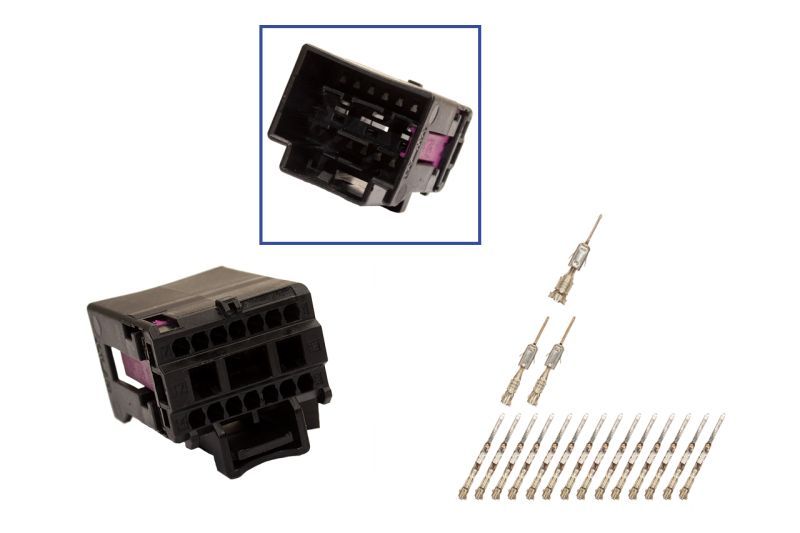

• Connector + contact material (17-pin socket housing 4F0 972 575 + 17x contacts)

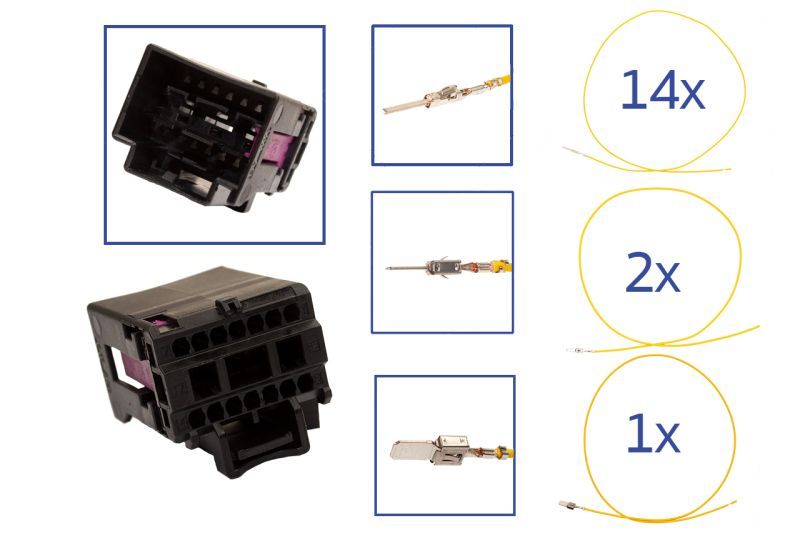

• Assembled repair kit (17-pin socket housing 4F0 972 575 with fully crimped connecting cables)

Note:

• To ensure proper function and tightness, make sure that the cable diameter and cross-section are correct
• The original spare part number / OE number is for comparison purposes only
