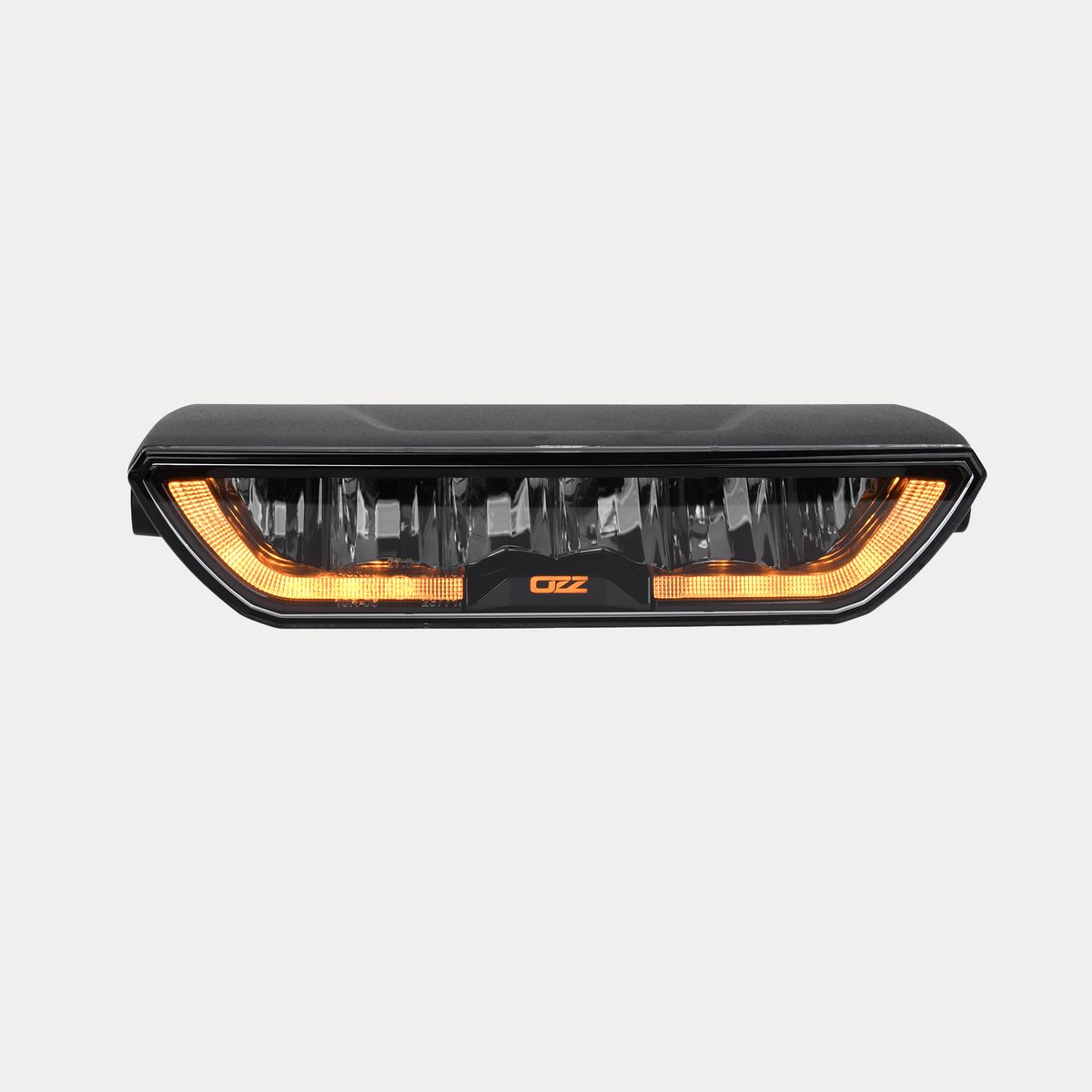

Experience good light with the OZZ XB1 P9″ dynamic LED light strip. This innovative light strip features dynamic position lights in white and yellow, creating a modern look for your vehicle.
This 228 mm LED bar delivers 3100 lumens, providing 1 lux at a distance of 315 meters.
The combo light ensures optimal visibility with a wide and long range. The light has a color temperature of 5000 K, which provides comfortable lighting in all conditions.
- Type of lamp: LED
- Type of LEDOsram P9
- Pcs LED6
- Voltage10-32V DC
- Theoretical effect (W) 12V60
- Theoretical effect (W) 24V60
- Actual effect (W) 12V42
- Actual effect (W) 24V42
- Nominal current at 12V3.34 A
- Nominal current at 24V1.67 A
- Theoretical lumen (Lm)4960
- Actual lumen (Lm)3100
- 1 lux @315 m
- Kelvin (K)5000
- IP-class (IP)IP68/IP69K
- Beam patternDriving
- Position lightdynamic white and amber
- Connection4-pin DT male + female
- Cable length (mm)1000 (800+200)
- Material bracketStainless steel
- Material chassiAluminum
- Material lensPolycarbonate

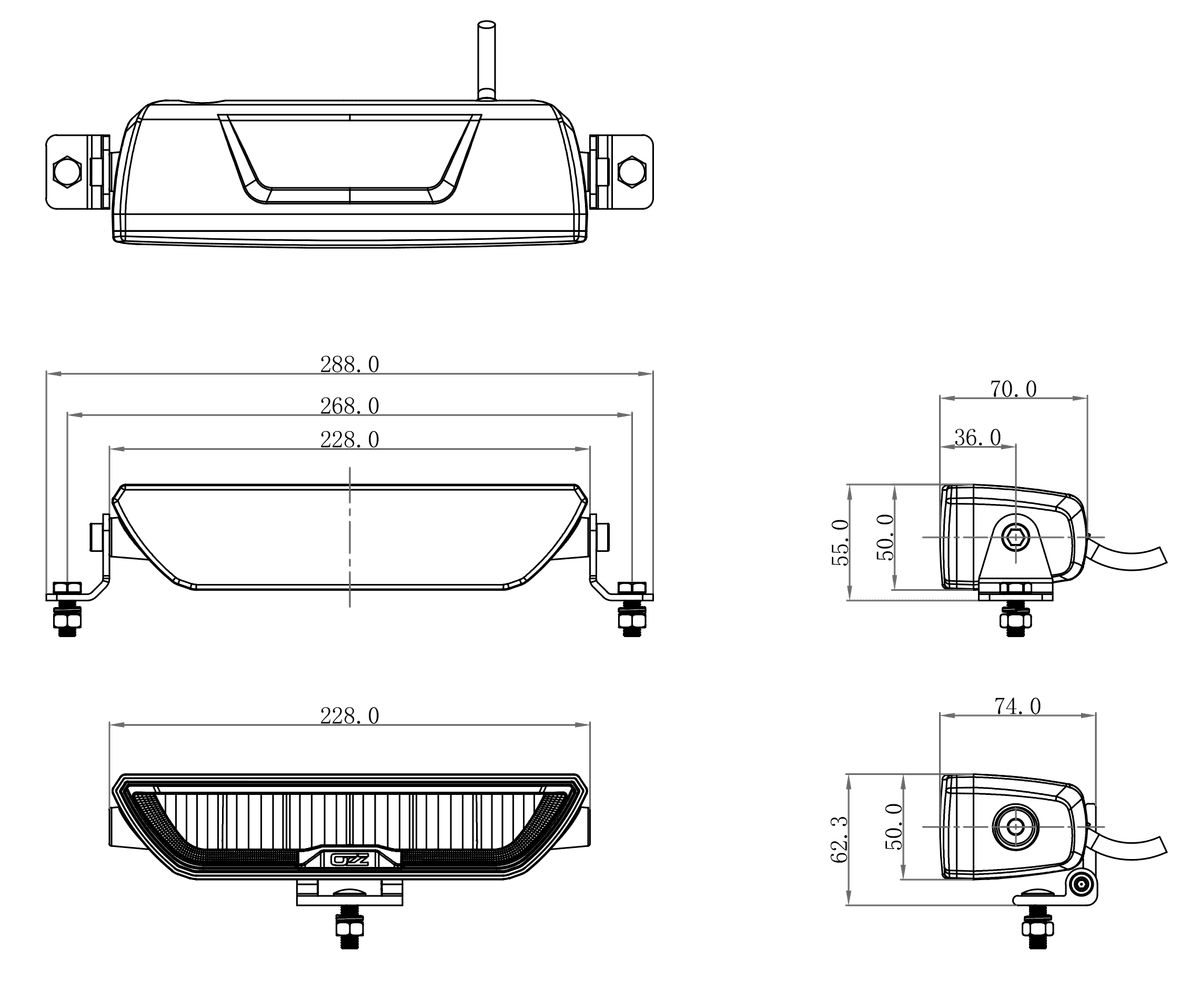

- LxDxH (mm)228x70x50
- Height including bracket (mm)55/62,3
- Operating temperature-40 – +60°C
- E-mark approvalR112, R7
- EMCECE R10
- Ref. no27,5
- Weight (kg)0,75
- Warranty3 years
- EAN code7333213101510
