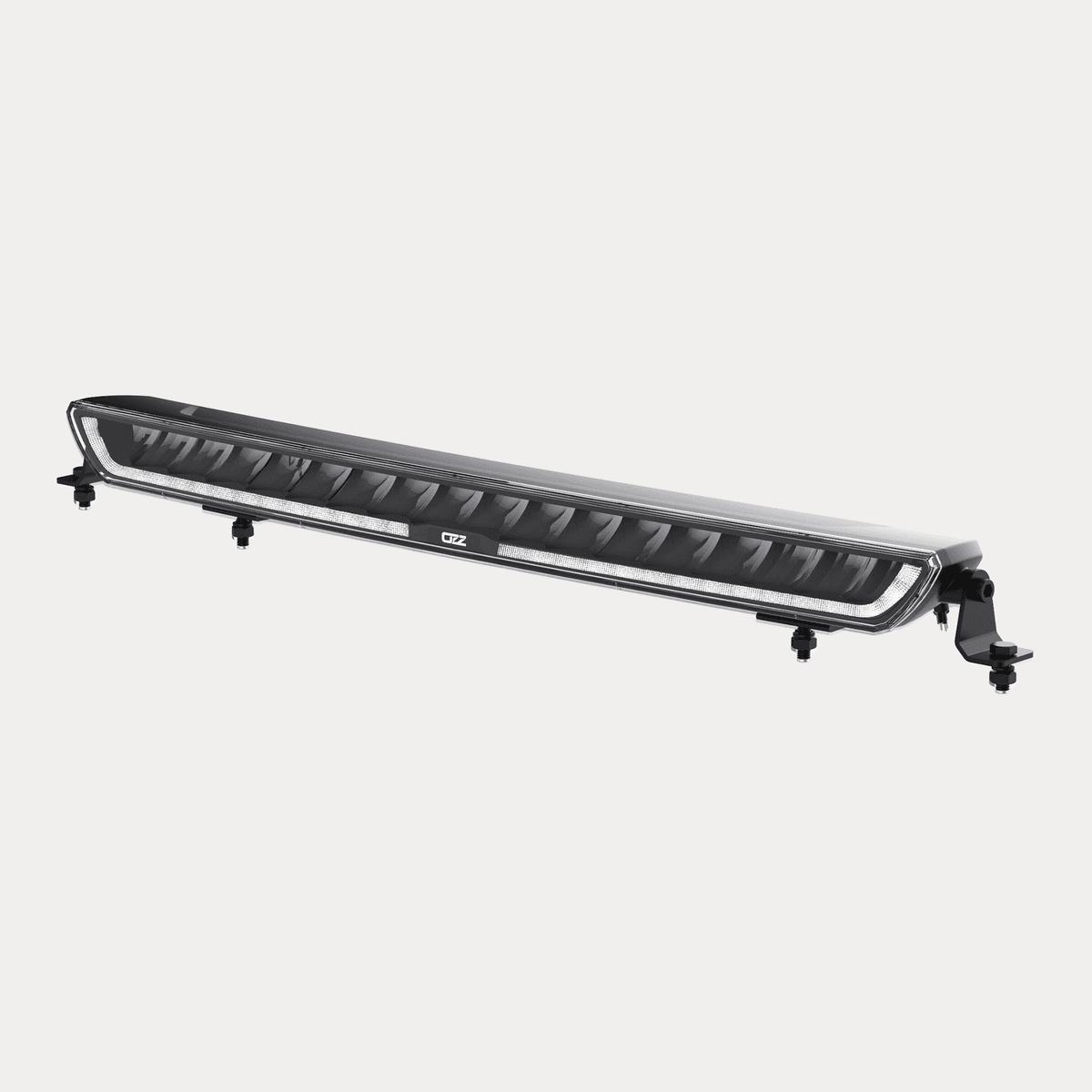

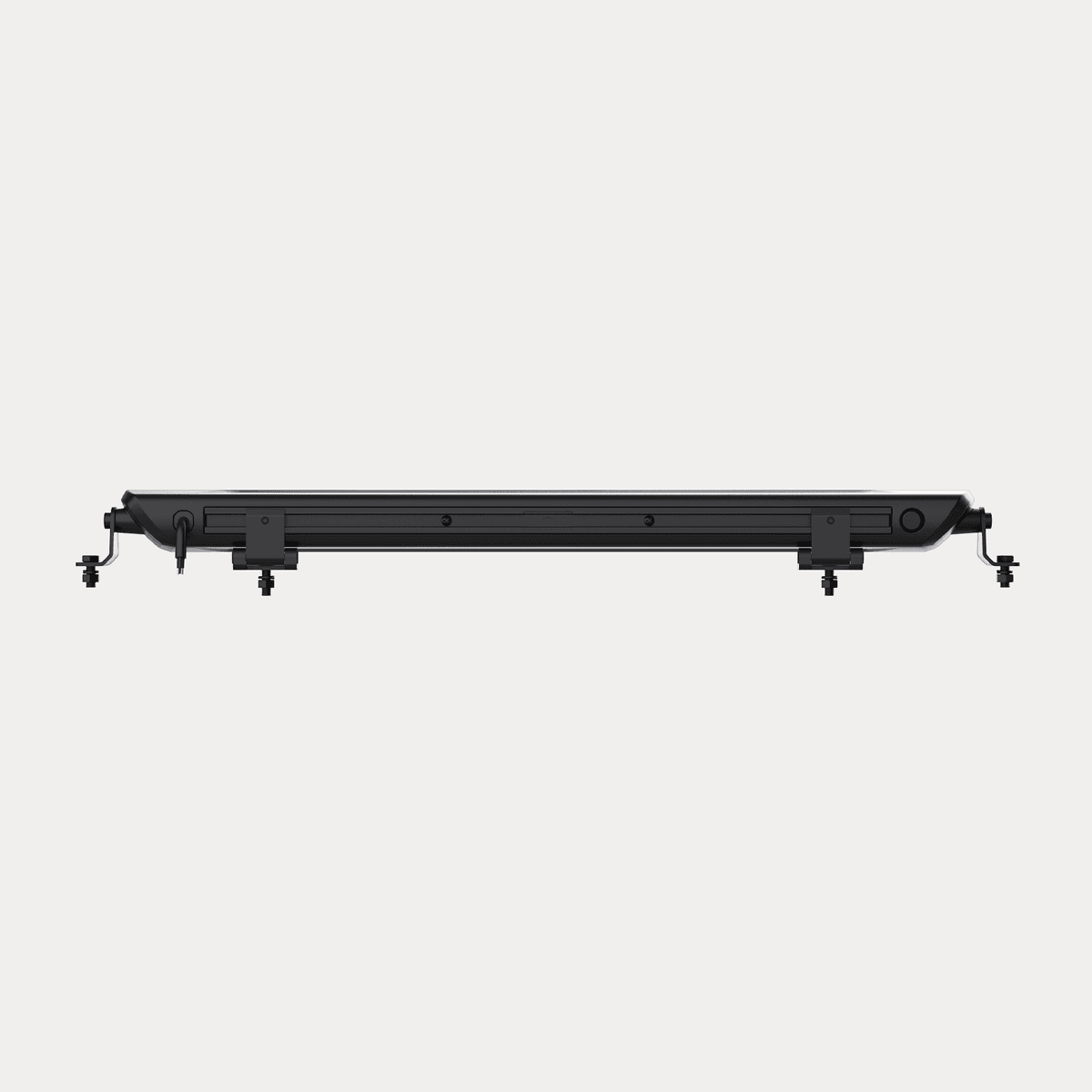

The OZZ XB1 P27” is a carefully engineered LED light bar designed to improve the safety and appearance of your vehicle in all driving situations.
Designed to integrate seamlessly with OZZ’s popular lighting range, the XB1 P27” features a modern design that easily complements your vehicle’s aesthetics. Featuring the signature OZZ position light with dynamic white and amber start-up, this stylish LED light bar delivers an impressive 7040 Lm and 9780 Lm with boost, ensuring exceptional visibility in all conditions. With a range of 1 lux extending up to 695 meters, the XB1 P27” guarantees clarity and increases your awareness of the road ahead. Rest assured that this product is ECE R10 and R112 certified and meets strict regulatory standards for road safety. Choose between a black or white design to best match your vehicle!
- Type of lampLED
- Pcs LED18
- Voltage10-32V DC
- Actual effect (W) 12VR112: 76, boost: 133
- Actual effect (W) 24VR112: 75, boost: 157
- Nominal current at 12VR112: 6,35 A, boost: 11,05 A
- Nominal current at 24VR112: 3,13 A, boost: 6,54 A
- Theoretical lumen (Lm)18000
- Actual lumen (Lm)R112: 7040, boost: 9780
- 1 lux @R112: 480 m, boost: 695 m
- Kelvin (K)5000
- IP-class (IP)IP68/IP69K
- Beam patternDriving
- Position lightdynamic white and amber
- Connection4-pin DT male + female
- Cable length (mm)2700
- Material bracketStainless steel
- Material chassiAluminum
- Material lensPolycarbonate

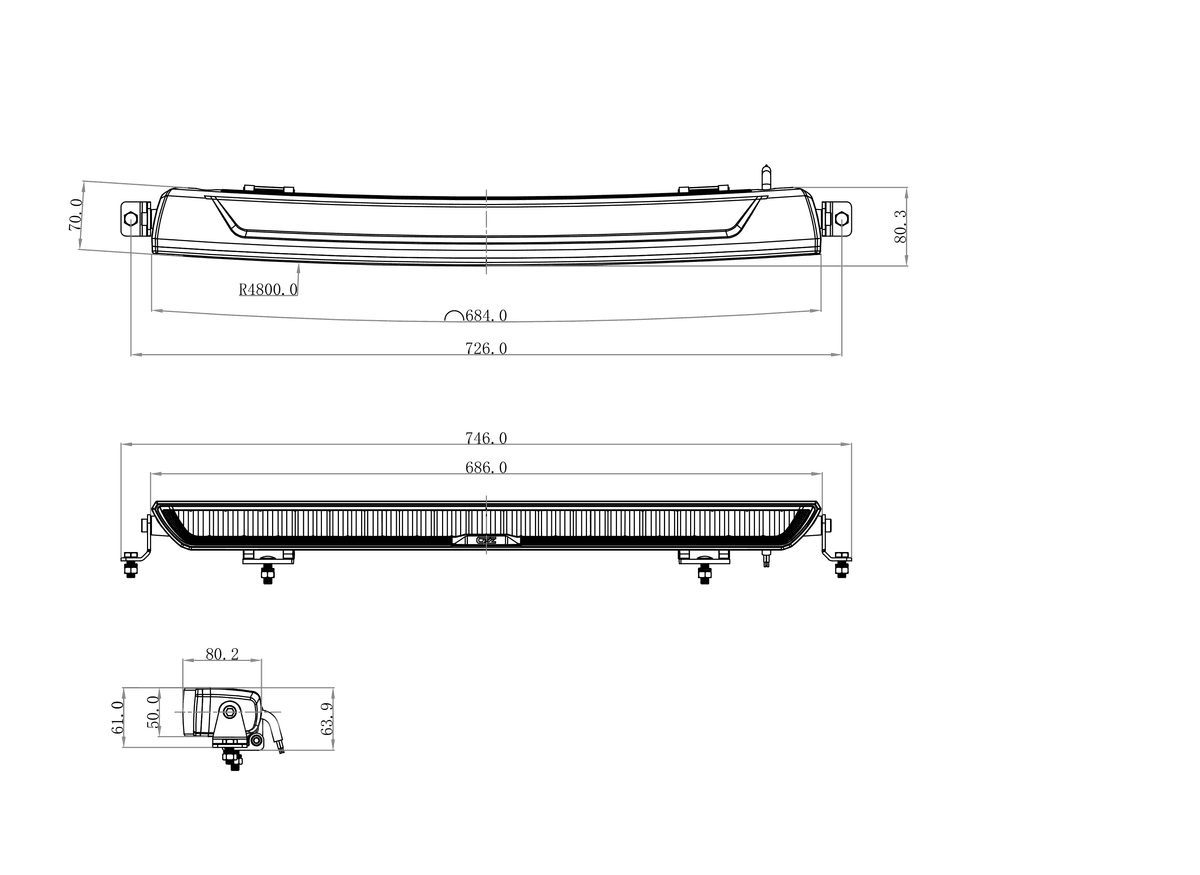

- LxDxH (mm)686×80,2×50
- Height including bracket (mm)61/63,9
- Operating temperature-40 – +60°C
- E-mark approvalR112, R7
- EMCECE R10
- Ref. no50
- Weight (kg)3
- Warranty3 years
- EAN code7333213101886
