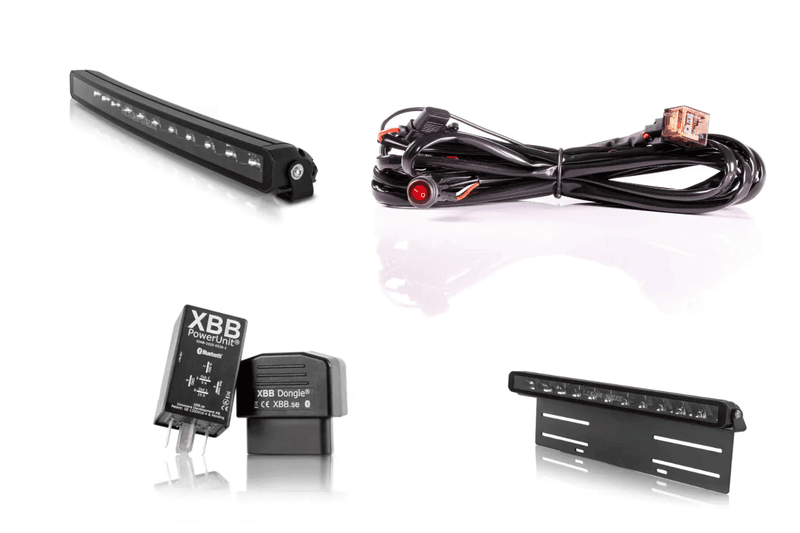

CS20 Lumen Performance kit with XBB

Lumen CS 20 Performance with only one thing in focus - pure performance and the highest possible brightness. Just pure performance!

High performance, without playing tricks with boost, made specifically for Nordic conditions!
The lamp has double approval, so it is in practice two approved lamps inside one lamp. And the slide is optimized to provide maximum brightness. Really a fantastic lamp.

The CS20 Performance has an effect of an incredible 22,984 lumens, and a throw length of almost a kilometer. Here you get a rawhide of a lamp!
With a curved design, the lamp follows the natural curve in the front bumper of the car so that you get a nice and discreet installation. Frameless design makes it easier to keep the lantern ice-free and dirt-free throughout the winter. The CS20 also has a brother, the S20 performance. Where the difference between the two is that the CS20 is curved at the front, while the S20 is straight. On the vast majority of cars, the CS20 fits better where it flows with the car's curved front. S20 is for cars with a flat front.

The Performance series is about getting the best possible light, but a slim profile also makes it easy to mount on most cars.

Combo beam pattern - Perfect as a high beam

Developed to provide an incredibly good slide that suits typical Scandinavian conditions. The light image is optimized for as much light as possible, spread horizontally over the road, with an additional spot in the middle. The perfect slide in a spotlight! You get a throw length of 976 meters (0.25 lux) and, in addition, a good width in the slide. The slide is very similar to the Lazer Linear 18, but you get a bit more throw in the center of the fairway, which has been missing on the Linear 18.

This is a complete relay set that has DTP 2-pin connectors attached for a plug and play solution for lights that have this connector.

This relay set is a great alternative if you are going to install, for example, Lumen's new Performance series. With the DTP connectors, you get a plug and play solution between the relay set, the battery and the lamps. In addition, you get a switch that has a small diode, but switches can also be removed if you don't want to use this. The DTP connector is a special connector, and is only used on larger beams that require a lot of power.

Swedish-made XBB Dongle & XBB Powerunit kit. The absolute easiest way to install additional lights on vehicles.
No need to tamper with the car's cables or worry about possible CAN-bus problems.

No impact on the car's electrical system, avoids error codes and costs.
Wireless communication via Bluetooth 5 to minimize cable pulling.

Retrieves the control current signal

XBB Dongle and XBB Powerunit are a smart and wireless solution for connecting additional lights on cars with canbus control. The XBB Dongle is simply placed in the OBD II connector and the XBB power unit is the relay that receives the signal from the Dongle. With the XBB products, there is no need to connect to the car physically and it can easily be removed when needed.

Connection

The XBB Dongle, which is the control unit, is plugged into the car's OBD port. This means that the control current signal for the main beam is taken directly from the OBD port and the information is then sent wirelessly to the relay (Power Unit) which controls the auxiliary light via this signal.

Compatible car models

Connection diagram

Installation guide

An absolutely ingenious mounting bracket that allows you to quickly and easily get a neat installation of your Lumen CS20 / S20 Performance. The bracket is attached behind the licens plate, and the lamp is attached to the bracket. It doesn't get any easier. The bracket can also be turned upside down if you want the lamps mounted under the licens plate.

The bracket is made of aluminium, which is easier to bend to the front of the car and adapt. This version has the mounts moved 18mm further from the car than before, which makes it far better on cars with a slightly curved front.

Assembly

Can be mounted above and below the sign, as well as facing inwards towards the car. For a more universal and flexible mounting, we recommend the Lumen V1 licens plate Bracket or the Lumen V5 LED-bar licens plate Bracket.

Delivered

• 1pc Lumen CS20 / S20 Performance licens plate bracket.
